Adopt Multi-actuator drive mode with fast installation and operation. The cost-effective system is stable and efficient and is suitable for large-scale solar plant with multiple field condition adaptation.
• PV string power supply with back up battery
• Wireless communication, less cable consumption
• All-weather shadow avoid strategy

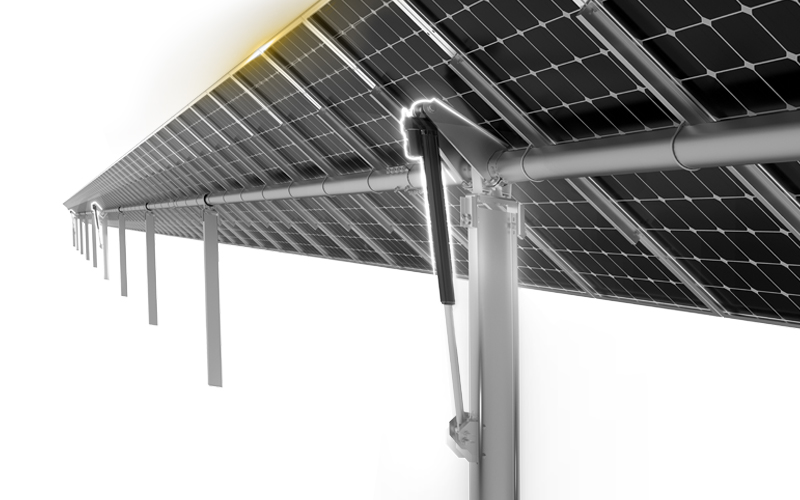

- Multi-Actuator drive with damper in between, significantly reduce resonance
- Linear actuator system, enables up to ±50° tracking
- With high natural frequency, stay stable for high critical wind speed
-Actuator is easy to install that only require one person
- U-shape torque tube higher section bending modulus
- Section purlin design can simplify the installation and strength the structure

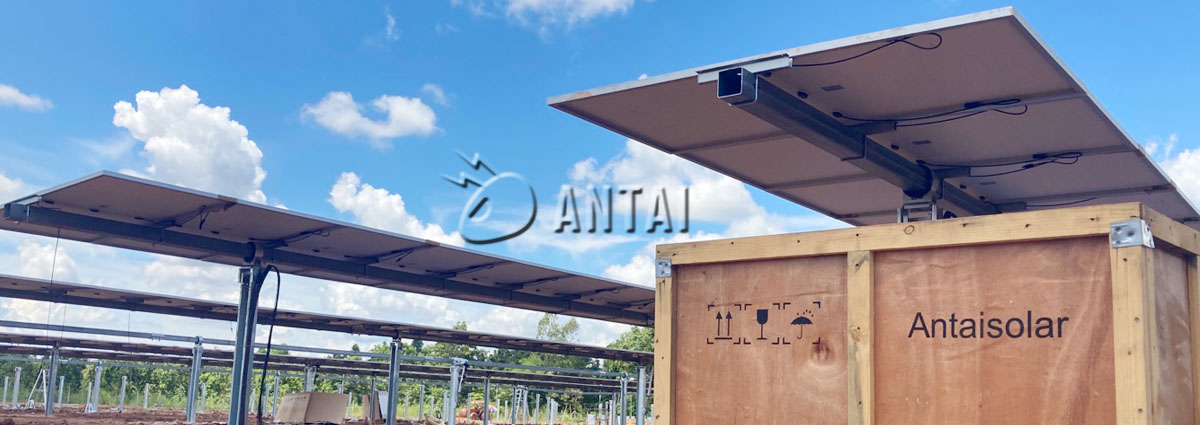

Location: Thailand

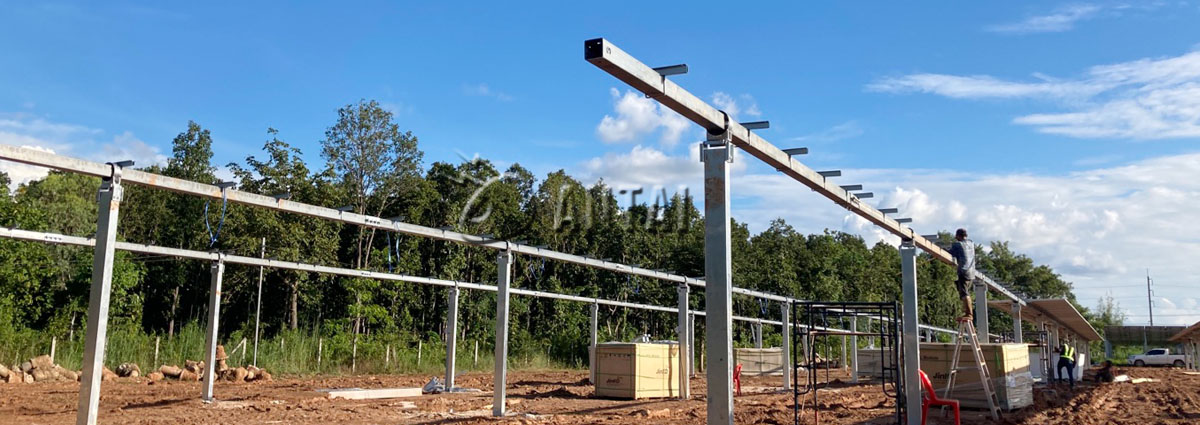

Location: Thailand
On site video below
|
Electrical Specification |
System Specification |
||
|
Control Mode |
MCU |
Drive mode |
Electrical Linear-Actuator |
|
Tracking Accuracy |
2° |
Foundation Type |
Concrete/Pile Ramming Steel |
|
Protection Level |
IP65 |
Tracking range |
±50° |
|
Working Temperature |
-40℃~85℃ |
Module Layout |
One-in-Portrait (1P) |
|
Power Supply |
PV String Power Supply |
Ground Clearance |
0.5m |
|
Monitoring System |
SCADA (Optional) |
Working Wind Tolerance |
≤18m/s |
|
Communication |
Wireless/Wire Communication |
Max Wind Tolerance |
55m/s(ASCE7-05)
|
Related Tags :

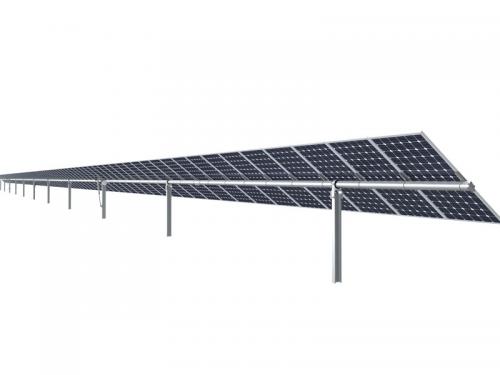

TAI-Space - Multiple Slew-Drive Single-Axis 1P Tracker
Equipped with multi-slew drives and can be extremely extend up to five strings, which made it become best choice for large scale solar plant in flat terrain.
Rail-Free ballasted flat mounting system
The Rail-Free ballasted flat mounting system is our newly developed product for your choice, a south-oriented racking solution for mounting framed modules on flat roofs with 5°，10°mounting tilts.
Railless metal sheet mounting system
The Railless metal sheet mounting system is light, small , cost-effective and easy to mount on trapezoidal metal sheet, allows for easy logistics.
Floating PV mounting system
It refers to the layout of floating power plants on water such as ponds, small lakes, reservoirs, and water storage tanks. Different from the fishing and light complementary type, it doesn’t require a large number of piling and fixing, and will not affect the water environment.

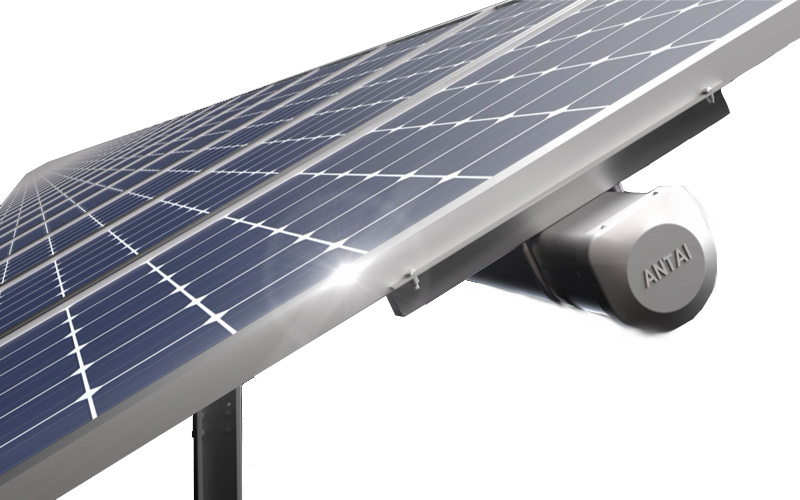

TAI-Simple- Slew-Drive Single-Axis 1P Tracker
