- Adopt patent 3/4 linear-actuator drive though transfer bar synchronously
- Easy-installed actuator only require one single person
- Multi-Actuator drive with damper in between, significantly reduce resonance
- Best match for bificial modules

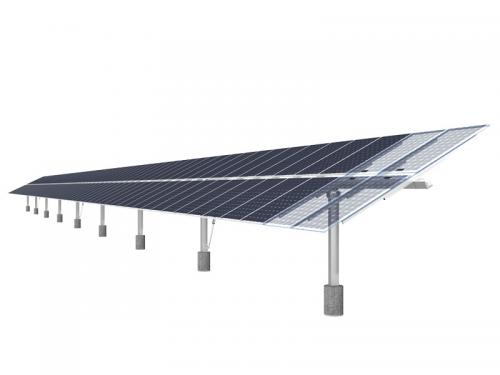

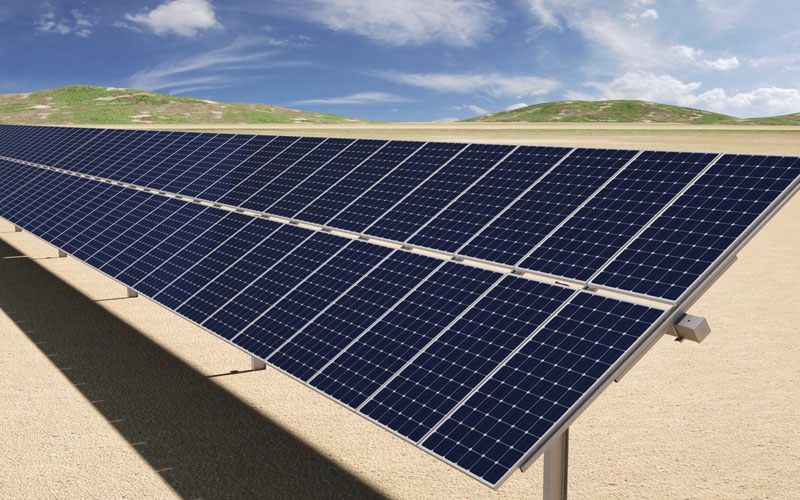

Adopt 3/4 actuator drive though transfer bar, stable and reliable, become most cost-effective bifacial solution with shadow avoid design.
• PV string power supply with back up battery
• Wireless communication, less cable consumption
• All-weather shadow avoid strategy

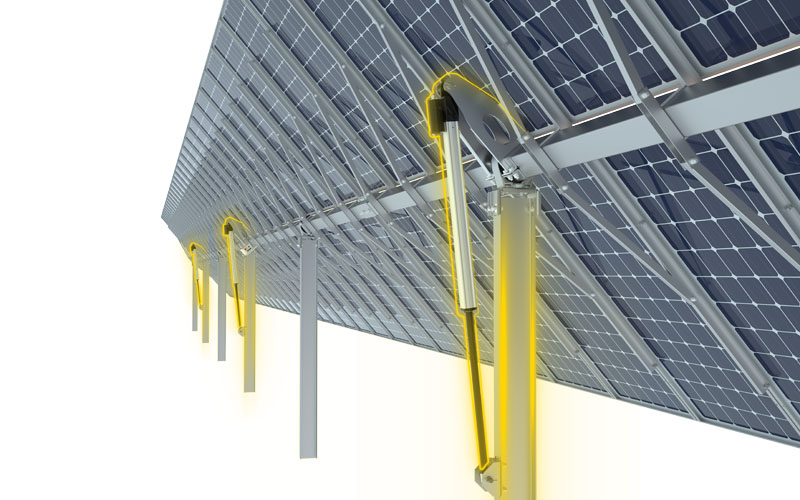

- Adopt patent 3/4 linear-actuator drive though transfer bar synchronously
- Easy-installed actuator only require one single person
- Multi-Actuator drive with damper in between, significantly reduce resonance
- Best match for bificial modules
- Great slope terrain adaptability
- Match for auto-cleaning robots
- Higher system nature frequency, wind resistance can increase by nearly 2 times

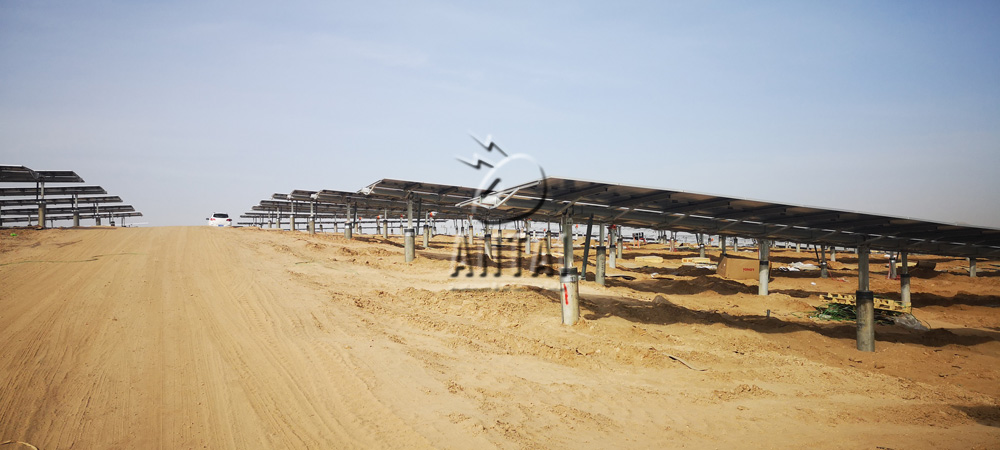

Capacity: 32MW
Location: China
Capacity: 32MW
Location: China
|
Electrical Specification |
System Specification |
||
|
Control Mode |
MCU |
Drive mode |
Electrical Linear-Actuator |
|
Tracking Accuracy |
2° |
Foundation Type |
Concrete/Pile Ramming Steel |
|
Protection Level |
IP65 |
Tracking range |
±55° |
|
Working Temperature |
-40℃~85℃ |
Module Layout |
Two-in-Portrait (2P) |
|
Power Supply |
PV String Power Supply |
Ground Clearance |
0.5m |
|
Monitoring System |
SCADA (Optional) |
Working Wind Tolerance |
≤18m/s |
|
Communication |
Wireless/Wire Communication |
Max Wind Tolerance |
55m/s(ASCE7-10 )
|
Adjustable tilt flat roof mounting system
The Adjustable tilt flat roof mounting system can be set at a tilt angle from 10° to 60°，which has great flexibility and can help to get the maximum solar power output.

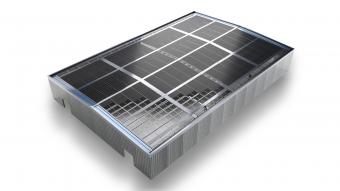

BIPV roof mounting system
Taiyang Roof BIPV System provides the perfect solution for building with PV generation, adopting innovative product design to ensure the whole structure 100% waterproof and easy to maintain.
Agricultural Greenhouses Mounting System
The agricultural farmland mounting system provides the perfect combination for both electricity generation and cultivation.

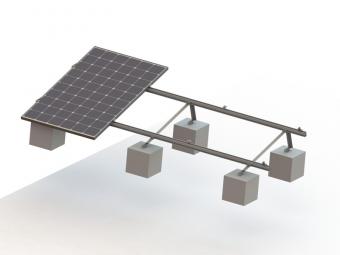

Non penetrating ballast mounting rack
The Non penetrating ballast mounting rack is a ideal solution for use on industrial buildings with low admission additional loads. The system is delivered in compact form to save cost.

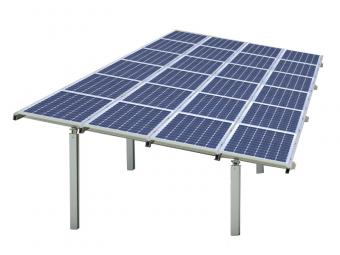

Biopost ground mounting system
The Biopost ground mounting system is ideal for is applied for large solar ground project installation on a non-sandy ground.

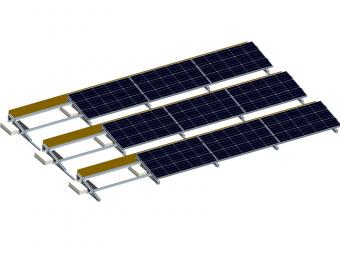

Triangle flat roof mounting system
The Triangle flat roof mounting system , a robust aluminum construction , the footing options for both ballasted solution and roof penetration.
Floating PV mounting system
It refers to the layout of floating power plants on water such as ponds, small lakes, reservoirs, and water storage tanks. Different from the fishing and light complementary type, it doesn’t require a large number of piling and fixing, and will not affect the water environment.

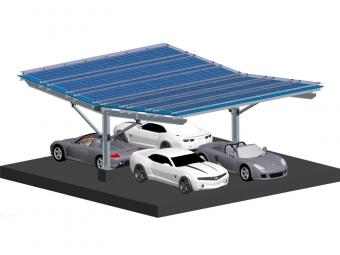

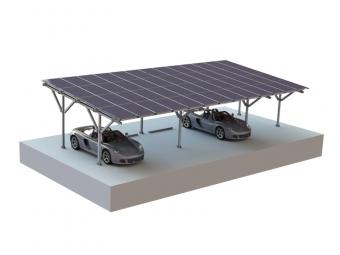

Waterproof carport solar mounting system
The waterproof carport solar mounting system is one of the advanced version to provide fully waterproof solution for parking lot shade.
