- Great slope terrain adaptability.
- Easy-installted actuator, only require one single person
- The industry's first BLDC system with a more than 30 years’ maintenance-free serviced life

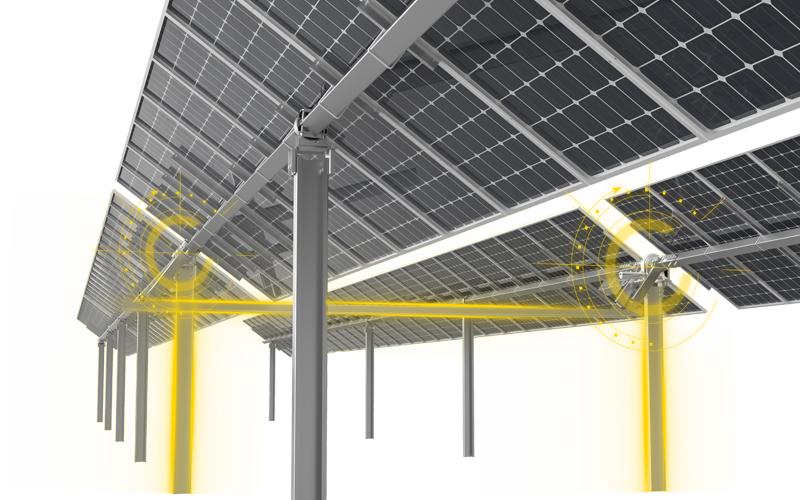

Adopted single-drive with central driveline, it's better fit for regions with low wind pressure. Dual-row linkage tracking mode make it perform well in complex terrain.
• Match for bifacial modules and auto-cleaning robots

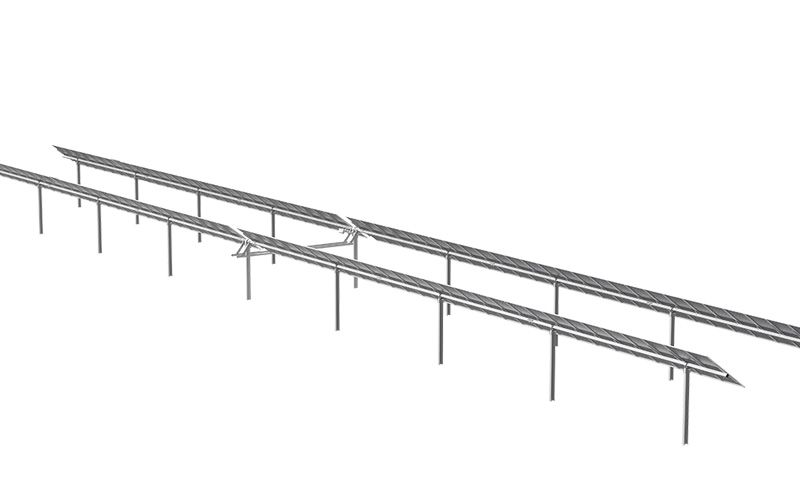

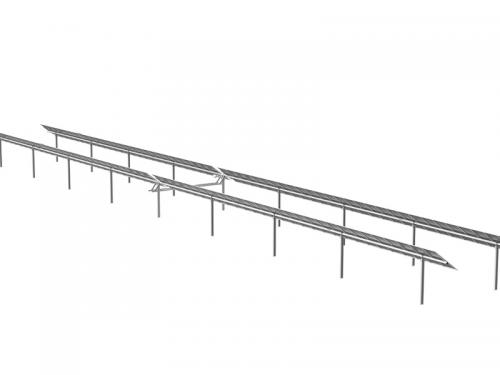

• Dual-row linkage, with the length of more than 70m
• Unique Brushless Direct Current Motor
- Great slope terrain adaptability.
- Easy-installted actuator, only require one single person
- The industry's first BLDC system with a more than 30 years’ maintenance-free serviced life
- Well suit for complex terrain with low wind pressure.
- AI Tracking Mode optimized tracking path, increasing 10% solarpower than conventional ones.
-Unique Brushless Direct Current Motor, life span is more than 30 years
|
Electrical Specification |
System Specification |
||
|
Control Algorithm |
Astronomical algorithm + tilt sensor close loop control |
Drive Mode |
Slew Drive with Central Driveline |
|
Control Component |
1 controller per tracker |
Foundation Type |
Driven Pile / Concrete / PHC
|
|
Communication |
Zigbee Wireless Mesh Network/ Ethernet or RS485 Cable |
Tracking Range |
±55° |
|
Working Temperature |
-30℃~60℃(with lithum battery), -40℃~60℃(without lithum battery) |
Module Layout |
One-in-portrait (1P) |
|
Power Supply |
One 1500VDC/1000VDC String Powered 850/550VAC Inverter PoweredString power：1500V Plant Service Power, Backup Lithium Battery
|
Slope Tolerances |
North-South 9° (15%)
|
|
Back Tracking |
Yes |
Allowable Wind Speed |
Up to 47 m/s per ASCE 7-10 |
|
Night Safe Stow |
Yes |
Warranty |
10 year Drive and Control 15 year Structure |
