- Maximum length of 240m with mainstream large-size module
- Unique multi-point drive, approved by authoritative CPP test and certification
- The industry's first BLDC system with a more than 30 years’ maintenance-free serviced life

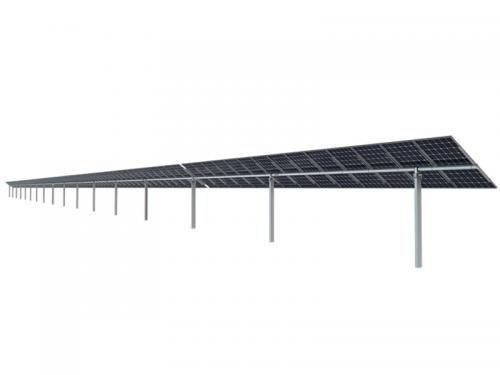

Equipped with multi-slew drives and can be extremely extend up to five strings, which made it become best choice for large scale solar plant in flat terrain.
• Maximum 240m in length with mainstream large-format module
• Unique drive through electric synchronously
• Unique Brushless Direct Current Motor
- Maximum length of 240m with mainstream large-size module

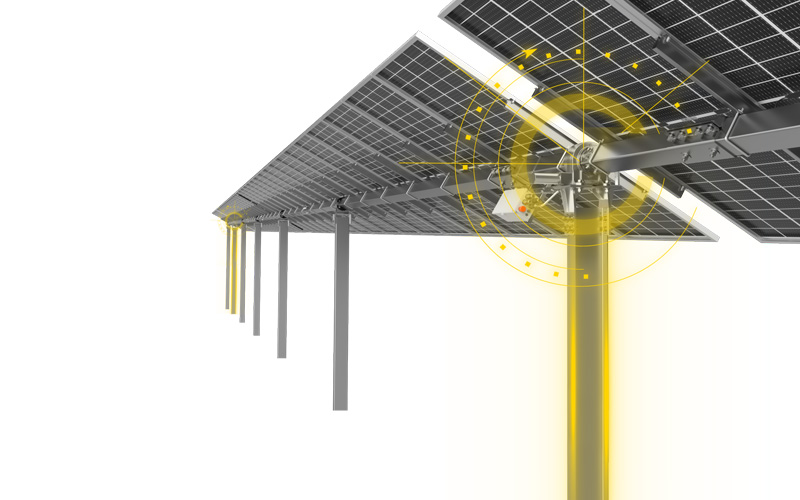

- Unique multi-point drive, approved by authoritative CPP test and certification
- The industry's first BLDC system with a more than 30 years’ maintenance-free serviced life
- Unique drive through electric synchronously, quick to installation and easy to maintenance

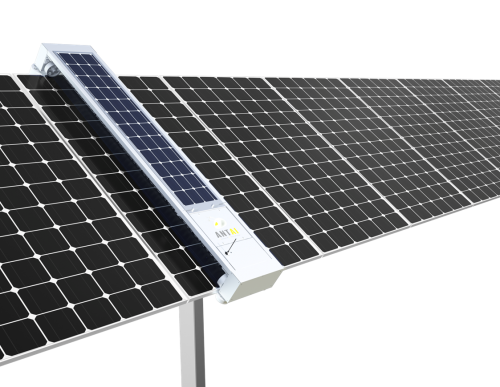

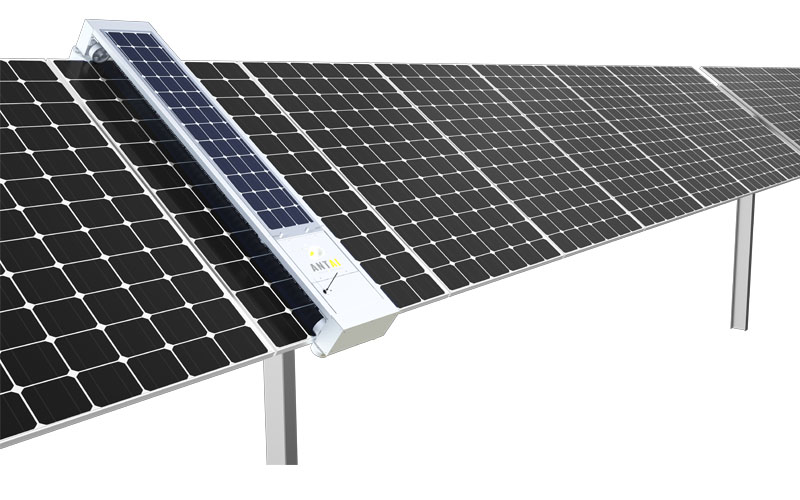

- Match for auto-cleaning robots
- Smart Commissioning allows for operated and tested via smart phone QR code scanning

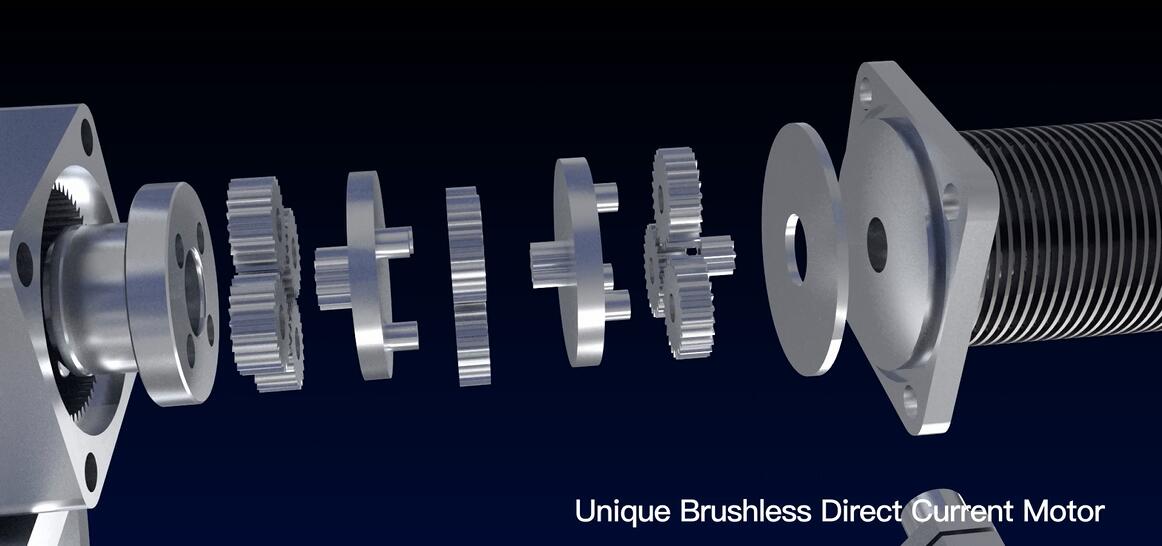

Unique Brushless Direct Current Motor, life span is more than 30 years
|
Electrical Specification |
System Specification |
||
|
Control Algorithm |
Astronomical algorithm + tilt sensor close loop control |
Drive Mode |
Slew driver |
|
Control Component |
Antai control unit, one unit per tracker |
Foundation Type |
Concrete/Pile ramming steel |
|
Communication |
Zigbee wireless communication/RS 485 cable communication |
Tracking Range |
±60° |
|
Working Temperature |
-30℃~60℃(with lithum battery), -40℃~60℃(without lithum battery) |
Module Layout |
One-in-portrait (1P) |
|
Power Supply |
String power/inverter/220VAC |
Ground Clearance |
0.3m |
|
Back Tracking |
Yes |
Working Wind Tolerance |
≤18m/s |
|
Night Safe Stow |
Yes |
Max Wind Tolerance |
55m/s(ASCE7-10 ) |
