- Effectively use of the space while generating electricity.
- Economical multi-function structure, ideal to present image.

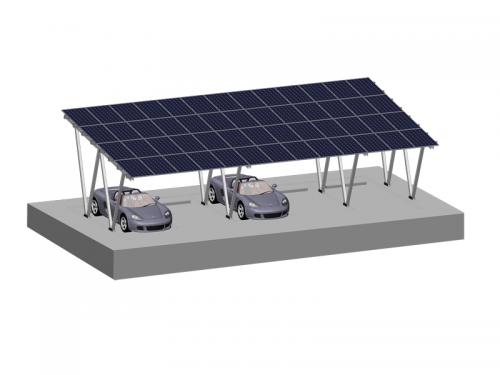

The Solar carport mounting system offers simplified and economic solution providing shade for parking and solar power generation, it is designed with different options for both single and double rows of parking, tailored for most module types, orientations, and inclinations. Various foundation options include precast concrete, bored pier and ground screw. Long spans between foundations reduce cost and simplify the installation process.
- Effectively use of the space while generating electricity.
- Economical multi-function structure, ideal to present image.
- Long spans between foundations saves cost.
- One parking structure, many benefits.
 |
 |
 |
 |
|
Beam connector |
Rail |
Rail splice |
Foot seat |
 |
 |
 |
|
| Pole |
End Clamp |
Inter Clamp |
|

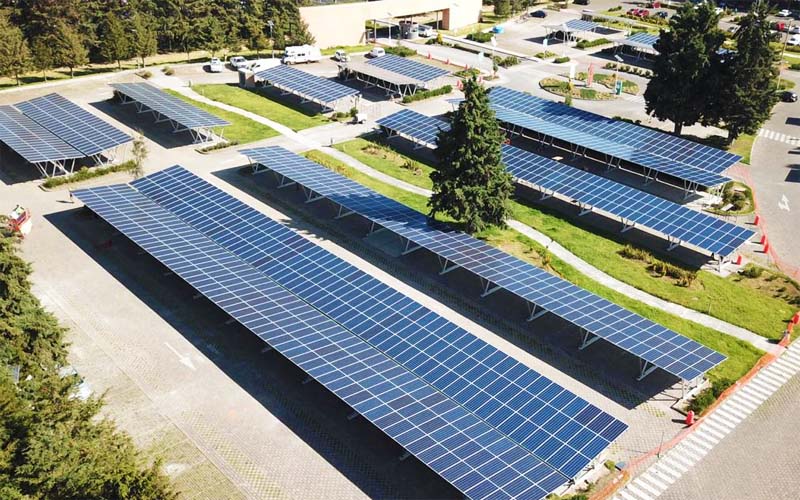

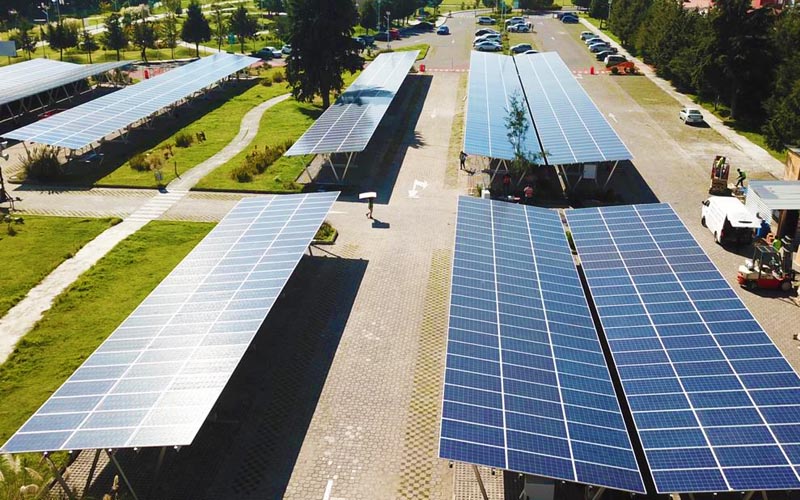

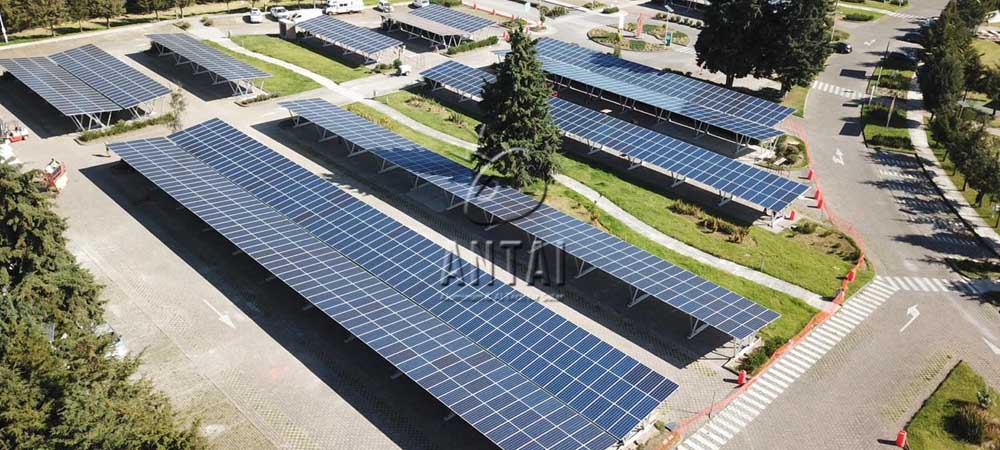

Location: Mexico
Capacity: 500KW

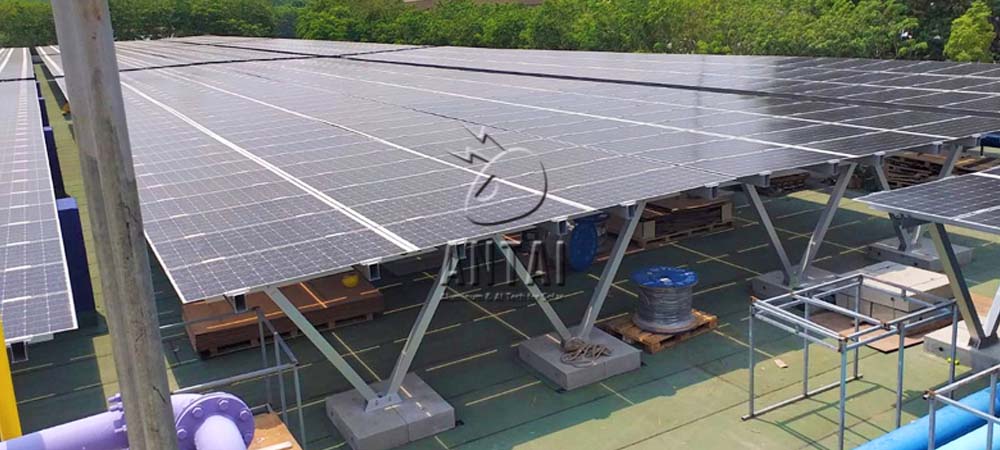

Location: Singapore
Capacity: 850KW
