- High pre-assembly before shipment eliminate the need for onsite cutting.
- H-rail simplify installation
- Fold design for easy transportation
- Optional for rail or railless design
The Triangle flat roof mounting system , a robust aluminum construction , the footing options for both ballasted solution and roof penetration.
The triangle flat roof mounting system with footing options for both ballasted solution and roof penetration. The innovative design and high pre-assembly eliminate the need for on-site cutting, welding and enables quick and easy field PV module installation.

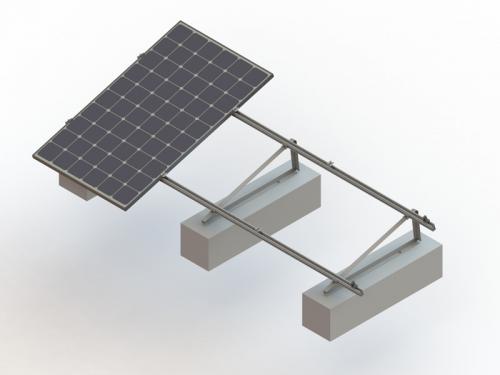

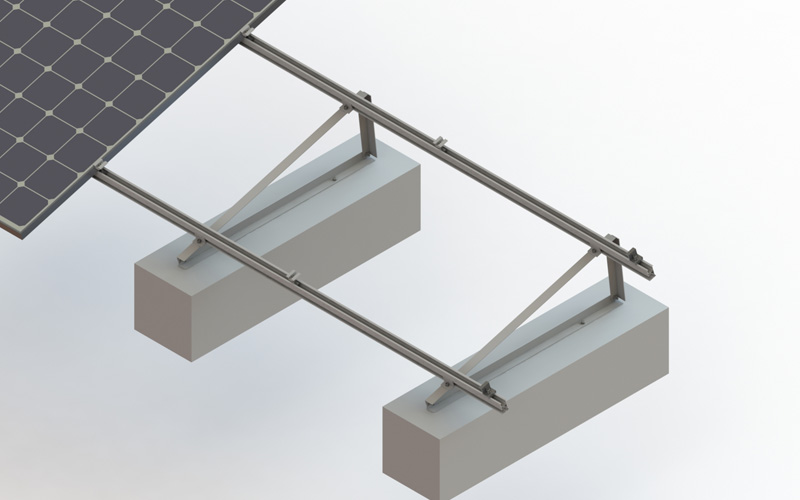

Aluminum Triangle Bracket (type 1)
- High pre-assembly before shipment eliminate the need for onsite cutting.
- H-rail simplify installation
- Fold design for easy transportation
- Optional for rail or railless design

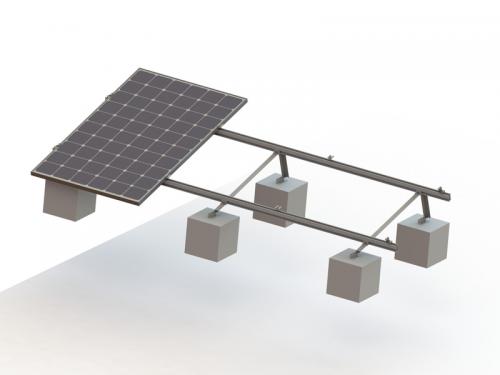

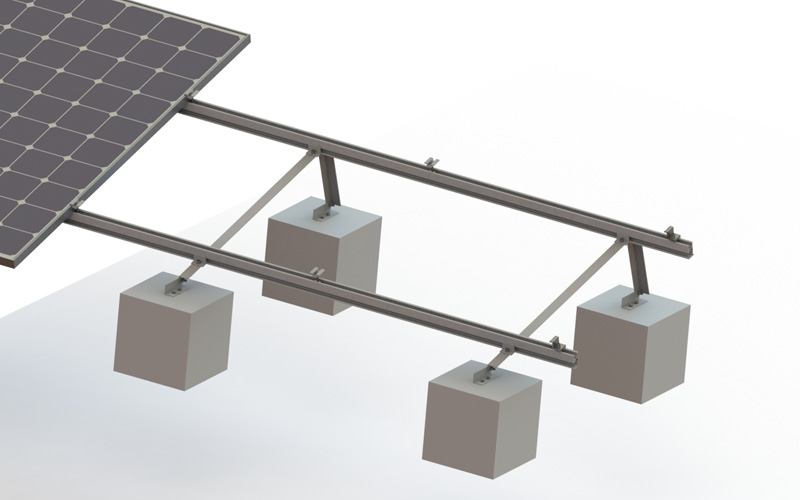

Aluminum Triangle Bracket (type 2)
- Universal design for flat roof or open terrain applications.
- Triangle structure design guarantees the stability while ensuring the fast and convenient installation.
- Various combinations,such as ballasted or roof penetration.
|
|
 |
 |
 |
|
Triangle support A
|
Triangle support B |
Rail |
Rail splice |
 |
 |
 |
|
|
End clamp |
Mid clamp |
Rail clamp |
|

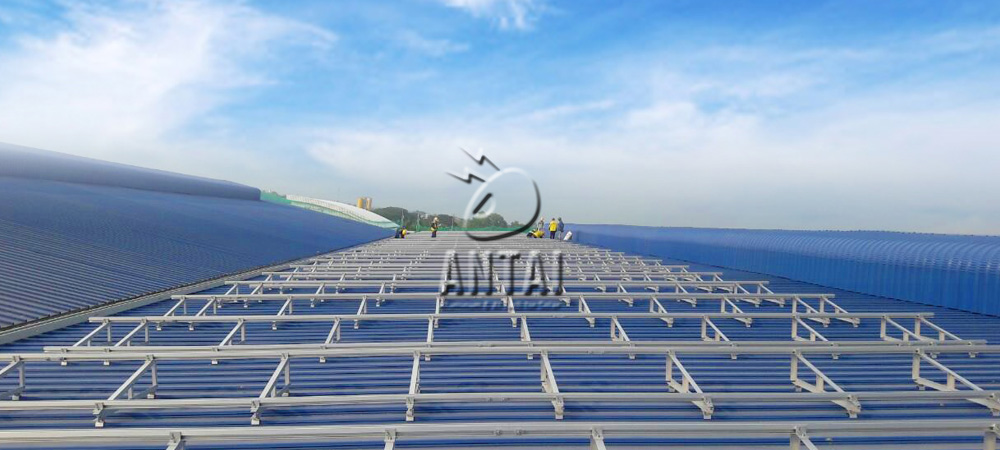

Location: Vietnam
Capacity: 2.25MW

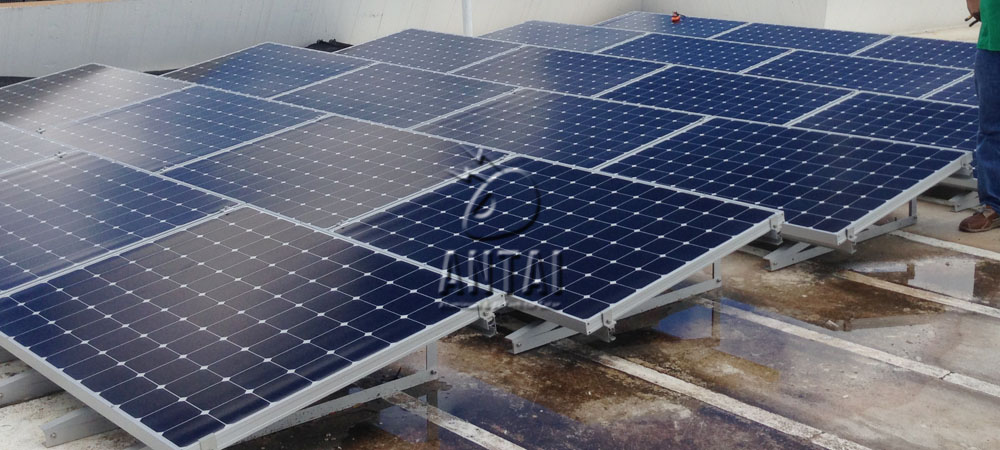

Location: Australia
Capacity: 10KW
Rail-Free ballasted flat mounting system
The Rail-Free ballasted flat mounting system is our newly developed product for your choice, a south-oriented racking solution for mounting framed modules on flat roofs with 5°，10°mounting tilts.
Floating PV mounting system
It refers to the layout of floating power plants on water such as ponds, small lakes, reservoirs, and water storage tanks. Different from the fishing and light complementary type, it doesn’t require a large number of piling and fixing, and will not affect the water environment.
TAI-Simple- Slew-Drive Single-Axis 1P Tracker
Adopt slew-drive, enlarging tracking range. Comparing with fix structure, it’s accurate tracking and can achieve 10%-15% power generation augmented.
Pile ground mounting system
The pile ground mounting system is ideal for uneven terrain, which is single or double post available, can achieve east to west adjustment, economical for large projects.
TAI-Space - Multiple Slew-Drive Single-Axis 1P Tracker
Equipped with multi-slew drives and can be extremely extend up to five strings, which made it become best choice for large scale solar plant in flat terrain.
Metal roof mounting system
The Metal roof mounting system is suitable for roofing with corrugated sheet metal, trapezoidal metal sheet. L Feet , hanger bolt is available as foot option.
Standing seam roof mounting system
The Standing seam roof mounting system is a headache-free, no roof penetration mounting solution for metal roofs with standing seam design.
BIPV roof mounting system
Taiyang Roof BIPV System provides the perfect solution for building with PV generation, adopting innovative product design to ensure the whole structure 100% waterproof and easy to maintain.
