- Ecological and low-maintenance for entire life span
- Ground screws and concrete foundations optional
- Pleasing aesthetics , high recycle value

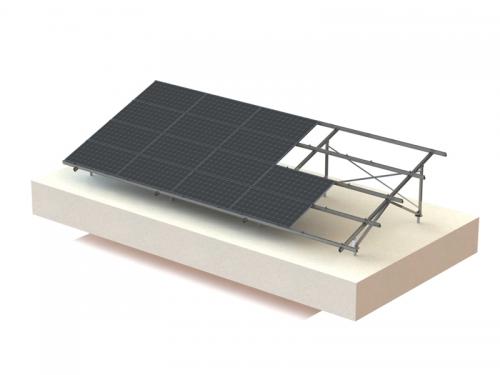

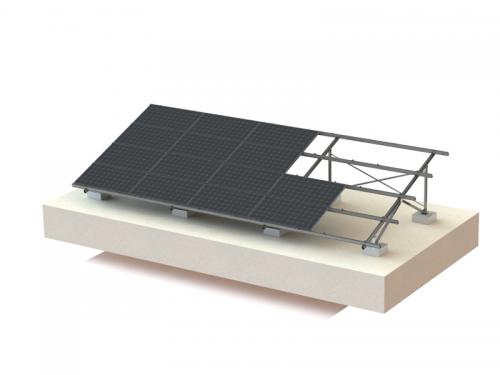

The Aluminum ground mounting system is highly anti-corrosion and the most aesthetic structure for ground mount installations.
Utilized AL6005-T6 material, the supporting footing is delivered with highest pre-assembly to unfold at site. The optimized design is carried out by experienced engineers to offer different joints according to different site conditions. It can use ground screw or concrete foundations, and achieve variable inclination and height makes plant design flexible.
- Ecological and low-maintenance for entire life span

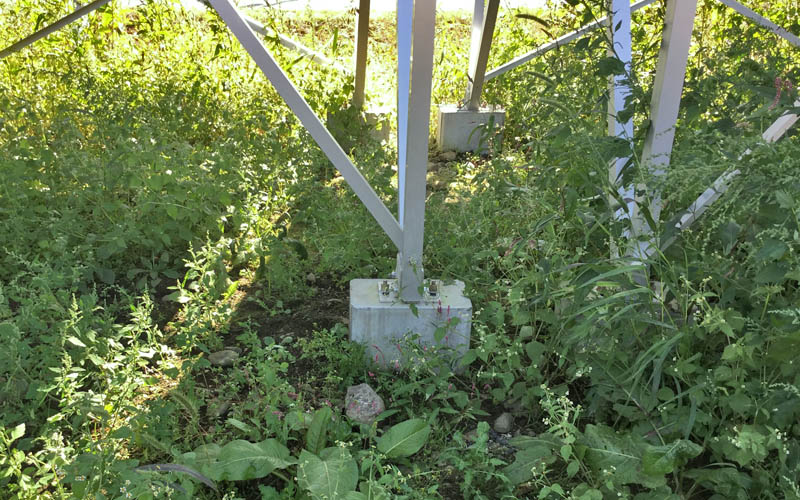

- Ground screws and concrete foundations optional
- Pleasing aesthetics , high recycle value
- Highly pre-assembled before shipment really simplify for easy installations.
- Corrosion resistant and light-weight ensured by Aluminum structure
- Wide range of rails and different joints design for site conditions
 |
 |
 |
 |
| CG-1 |
CG-2 |
NW50-1 |
NW-50-2 |
 |
 |
 |
 |
| NW60-1 |
NW60-2 |
SC-1 | SC-2 |

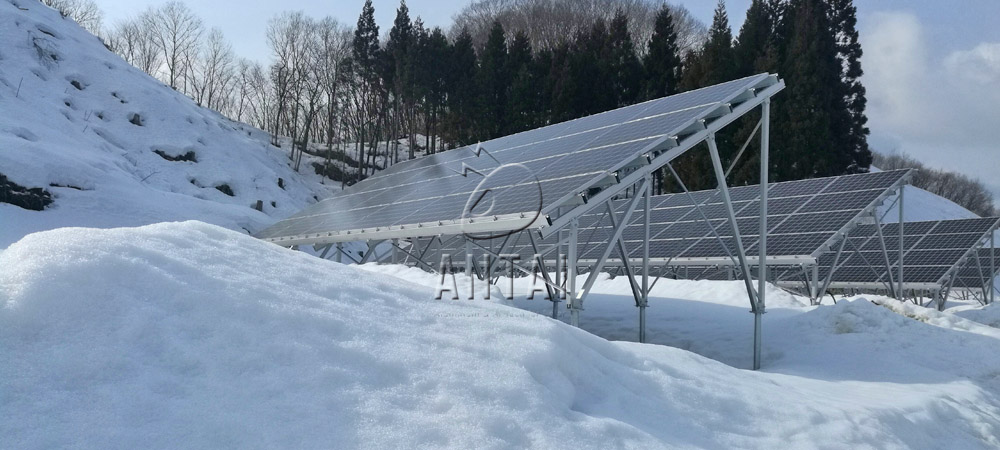

Location: Japan
Capacity: 16MW
Product： NW Series

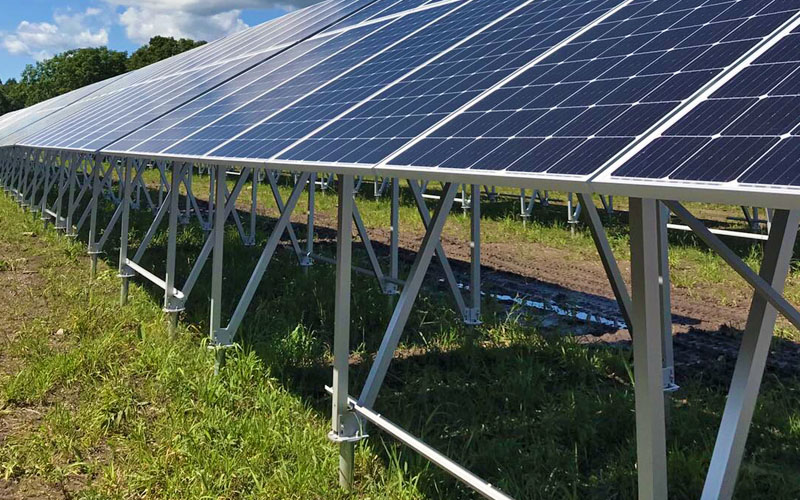

Location: Japan
Capacity: 2.5MW
Check the video below
