- Biopost structure for larger span and bigger array
- Significant savings by pile-driven machine with fast piling

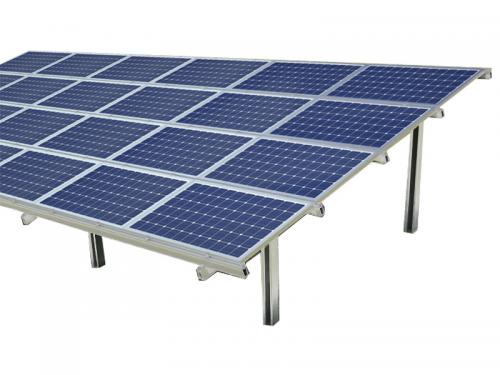

The Biopost ground mounting system is ideal for is applied for large solar ground project installation on a non-sandy ground.

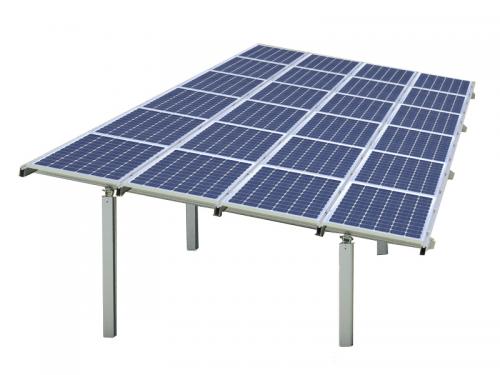

Solaxisys biopost ground mounting system is applied for large solar ground project installation on a non-sandy ground. It’s suitable not only for flat ground, but also for uneven complex terrain and slope conditions. Double post design for larger span and bigger array, the post can be easily rammed into the ground 1~2 meters by pile machine to largely save labor cost.
It can be designed with installation angles and heights to be adjustable when applied for slope, which is adaptable to various weather conditions in a flexible way.
- Biopost structure for larger span and bigger array
- Significant savings by pile-driven machine with fast piling
- Ramming posts allows for surrounding areas remaining unaffected
- Surrounding areas remains unaffected
 |
 |
 |
 |
|

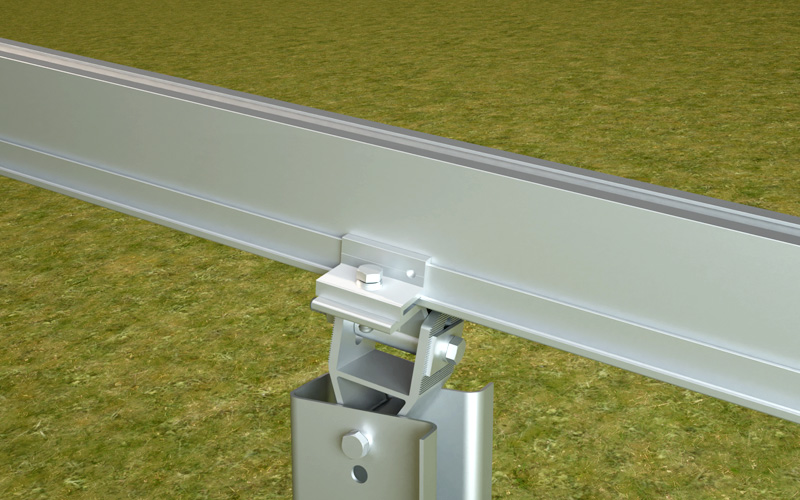

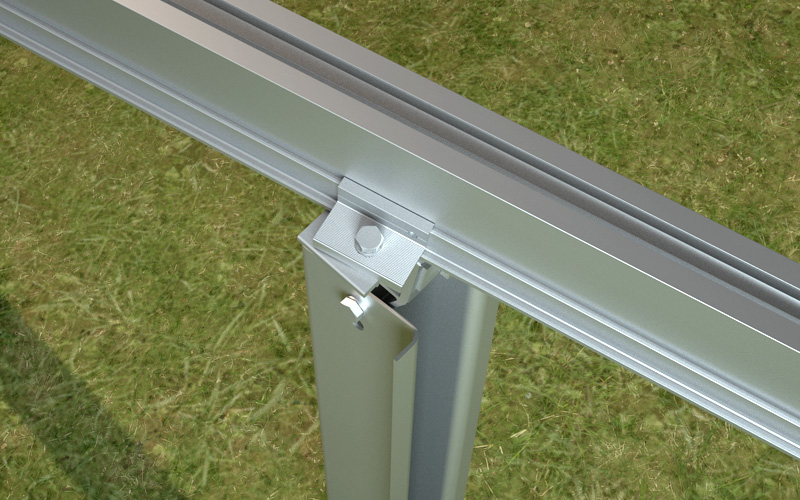

Pre-assembled beam |
Rail |
U Pillar |
Pillar base |
 |
 |
 |
 |
| Rail clamp |
Rail splice |
Inter Clamp | End Clamp |

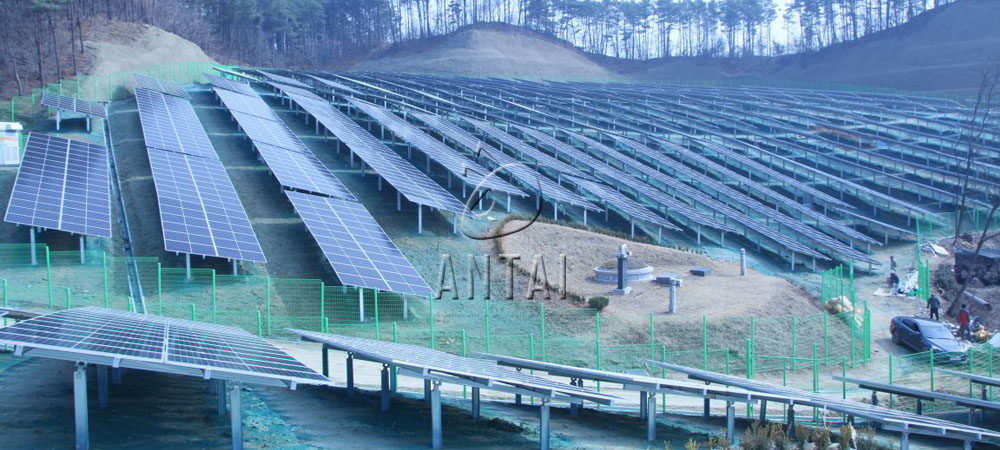

Location: South Korea
Capacity: 5.7MW

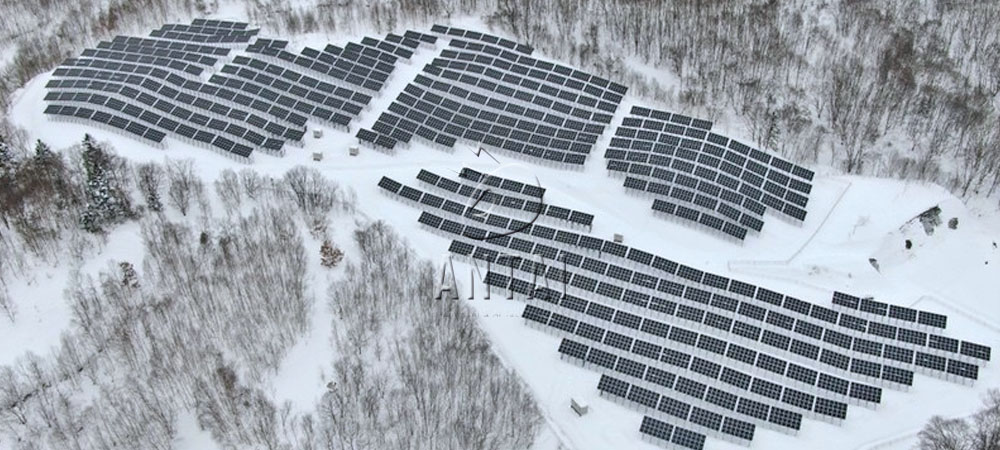

Location: Japan
Capacity: 2MW
Metal roof mounting system
The Metal roof mounting system is suitable for roofing with corrugated sheet metal, trapezoidal metal sheet. L Feet , hanger bolt is available as foot option.
E-SPACE - Single Slew-Drive Dual-row linkage 1P tracker
Adopted single-drive with central driveline, it's better fit for regions with low wind pressure. Dual-row linkage tracking mode make it perform well in complex terrain.

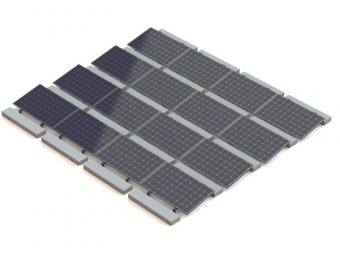

Floating PV mounting system
