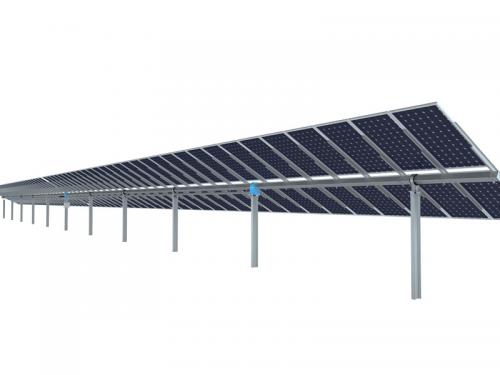

- Patent multi-slew-drive design, balanced force , safe and reliable
- Higher adaptability for sloping area, wider range of tracking up to ±60°
- Best match for bifacial modules

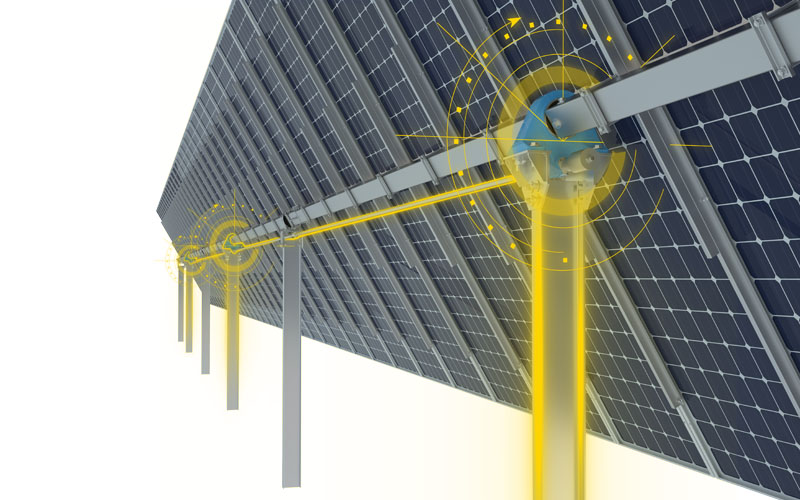

Adopt trio slew-gear motor drive mode which can limit girder distortion risk and
ensure stable operation and accurate transmission.
• PV string power supply with back up battery
• Wireless communication, less cable consumption
• All-weather shadow avoid strategy
- Patent multi-slew-drive design, balanced force , safe and reliable
- Higher adaptability for sloping area, wider range of tracking up to ±60°
- Best match for bifacial modules
- Wider tracking range for better power generation
- Match for auto-cleaning robots
- higher system nature frequency, wind resistance can increase by nearly 2 times

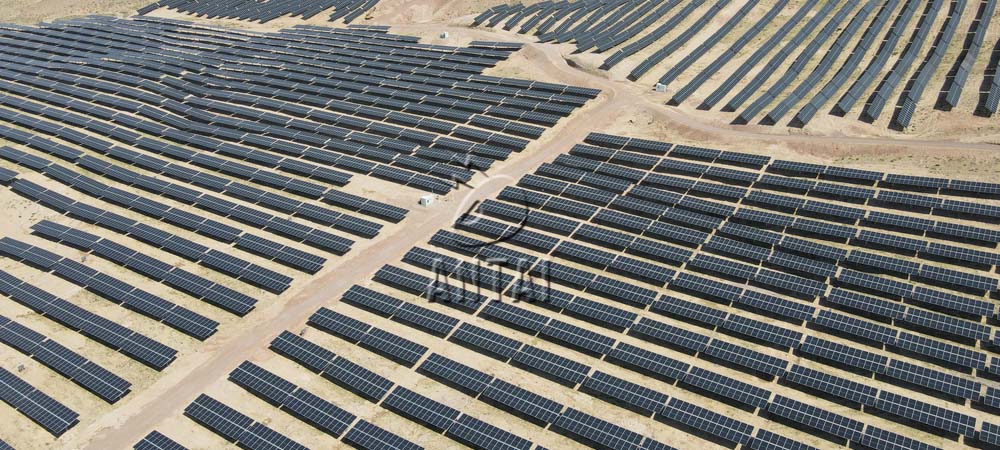

Capacity: 30MW
Location: China

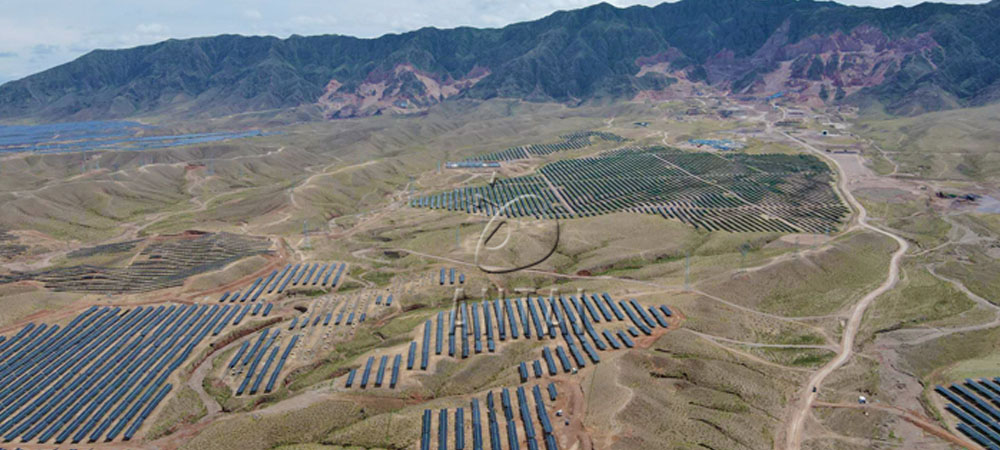

Capacity: 30MW
Location: China
Check the video below
|
Electrical Specification |
System Specification |
||
|
Control Mode |
MCU |
Drive mode |
Slewing Drive |
|
Tracking Accuracy |
2° |
Foundation Type |
Concrete/Pile Ramming Steel |
|
Protection Level |
IP65 |
Tracking range |
±60° |
|
Working Temperature |
-40℃~85℃ |
Module Layout |
Two-in-Portrait (2P) |
|
Power Supply |
PV String Power Supply |
Ground Clearance |
0.3m |
|
Monitoring System |
SCADA (Optional) |
Working Wind Tolerance |
≤18m/s |
|
Communication |
Wireless/Wire Communication |
Max Wind Tolerance |
55m/s(ASCE7-10 ) |

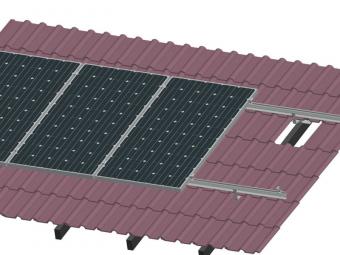

Tile roof solar mounting system
The Tile roof solar mounting system is suitable for roofing with pantiles and corrugated fibre cement, with wide range of different roof hook for the best choice.
Pile ground mounting system
The pile ground mounting system is ideal for uneven terrain, which is single or double post available, can achieve east to west adjustment, economical for large projects.

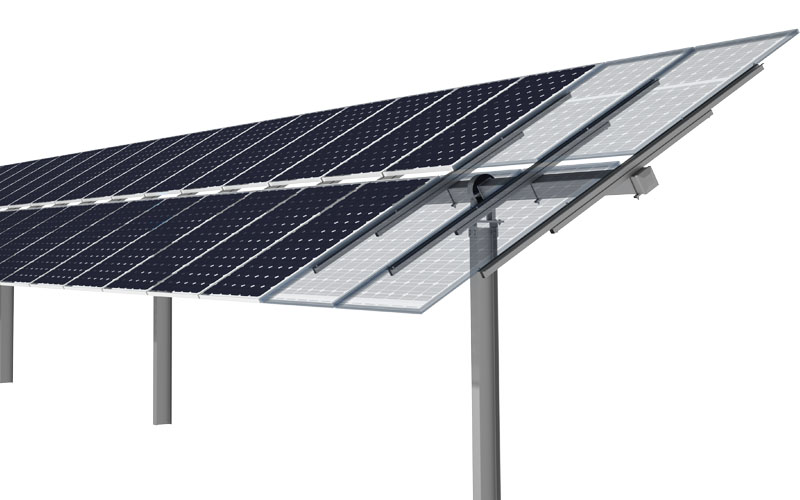

ANT-Cloud-Multi-Actuator Single-Axis 2P Tracker
Adopt 3/4 actuator drive though transfer bar, stable and reliable, become most cost-effective bifacial solution with shadow avoid design.

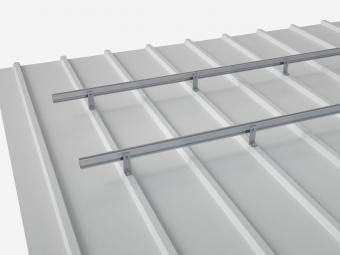

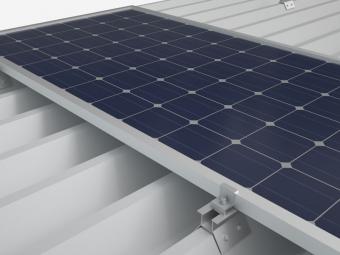

Standing seam roof mounting system
