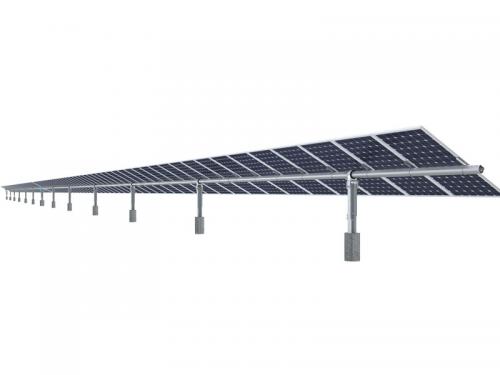

- Single slew-drive design
- Match for bifacial modules
- Match for auto-cleaning robots

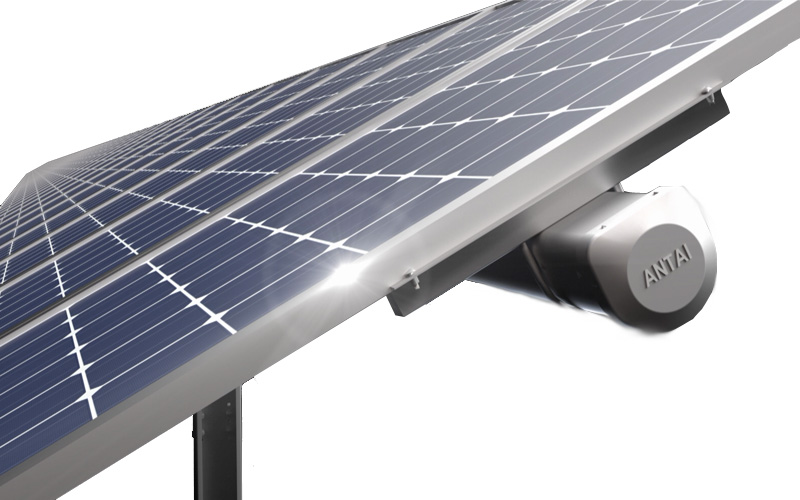

Adopt slew-drive, enlarging tracking range. Comparing with fix structure, it’s accurate tracking and can achieve 10%-15% power generation augmented.
• PV string power supply with back up battery
• Wireless communication, less cable consumption
• All-weather shadow avoid strategy
- Single slew-drive design
- Match for bifacial modules
- Match for auto-cleaning robots
- Dampers on both sides, effectively protect the torque tube
-Fewer column for fast installation

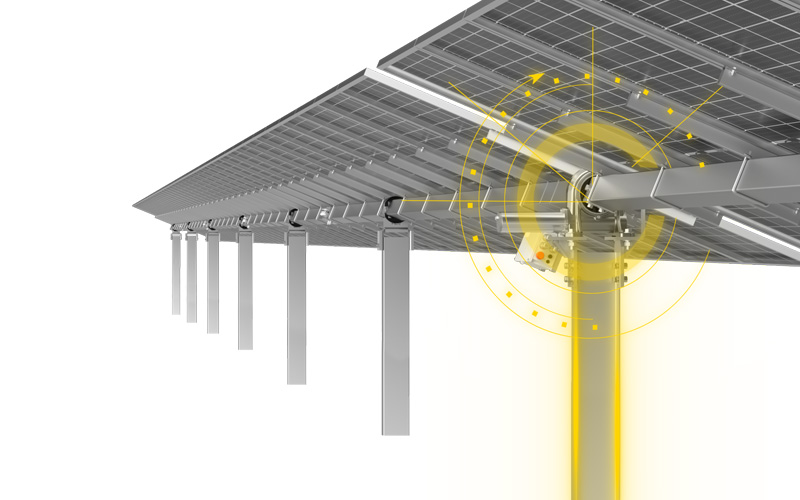

- Wide tracking range

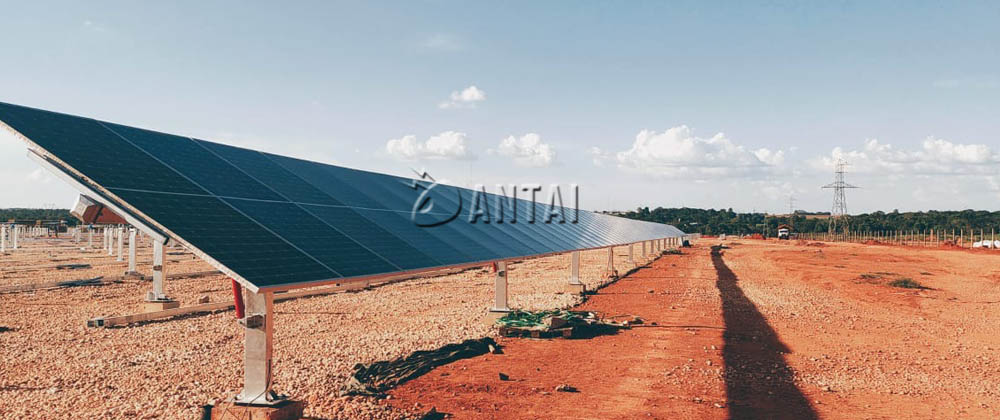

Capacity: 6.259MW
Location: Brazil
|
Electrical Specification |
System Specification |
||
|
Control Mode |
MCU |
Drive mode |
Slewing drive |
|
Tracking Accuracy |
2° |
Foundation Type |
Concrete/Pile Ramming Steel |
|
Protection Level |
IP65 |
Tracking range |
±60° |
|
Working Temperature |
-40℃~85℃ |
Module Layout |
One-in-Portrait (1P) |
|
Power Supply |
PV String Power Supply |
Ground Clearance |
0.3m |
|
Monitoring System |
SCADA (Optional) |
Working Wind Tolerance |
≤18m/s |
|
Communication |
Wireless/Wire Communication |
Max Wind Tolerance |
47m/s(ASCE7-05)
|
