- Highly corrosion resistant aluminum components and stainless steel parts for harsh condition
- Significant savings by pile-driven machine with fast piling.

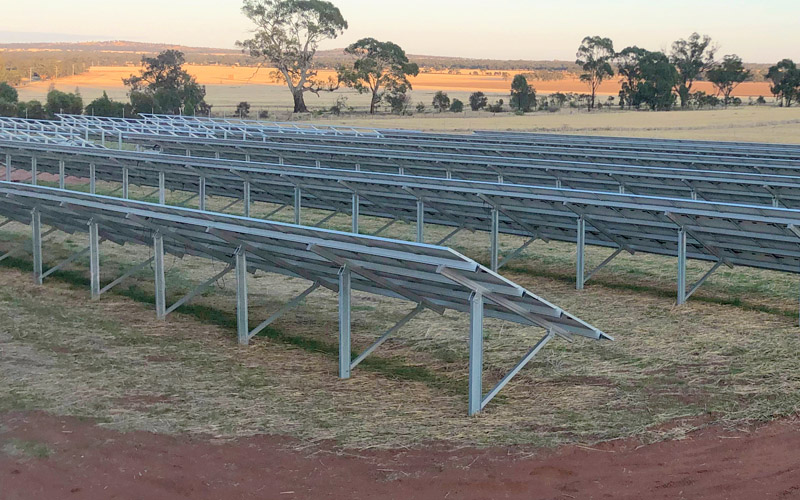

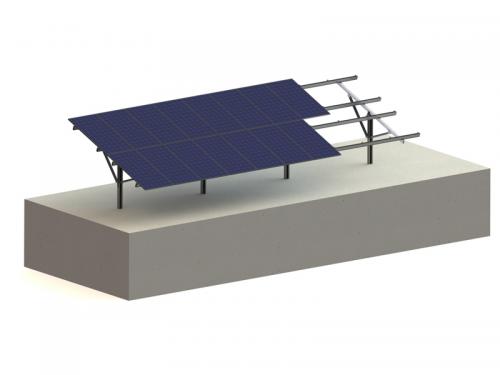

The pile ground mounting system is ideal for uneven terrain, which is single or double post available, can achieve east to west adjustment, economical for large projects.

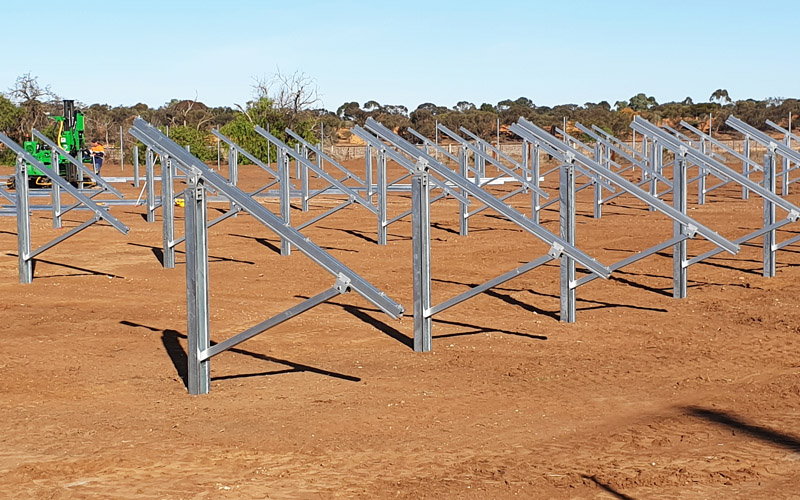

The pile driven ground mounting system is a very economical solution for large commercial and utility scale installations, it’s suitable for both framed and frameless modules, especially on uneven terrain. The use of ramming posts eliminates the need for additional excavation works, and pile-driven machine reduce labor and time remarkably on site. For large projects, this means high cost savings. Single post system allows for easy maintenance around and under the modules. Double post optional for larger span and bigger array.
- Highly corrosion resistant aluminum components and stainless steel parts for harsh condition
- Significant savings by pile-driven machine with fast piling.
- Ramming posts allows for surrounding areas remaining unaffected
- Single post system allows for easy maintenance
 |
 |
 |
 |
|
Pre-assembled beam |
T110 Rail |
U Pillar |
Pillar base |
 |
 |
 |
 |
| Rail clamp |
Rail splice |
Inter Clamp | End Clamp |

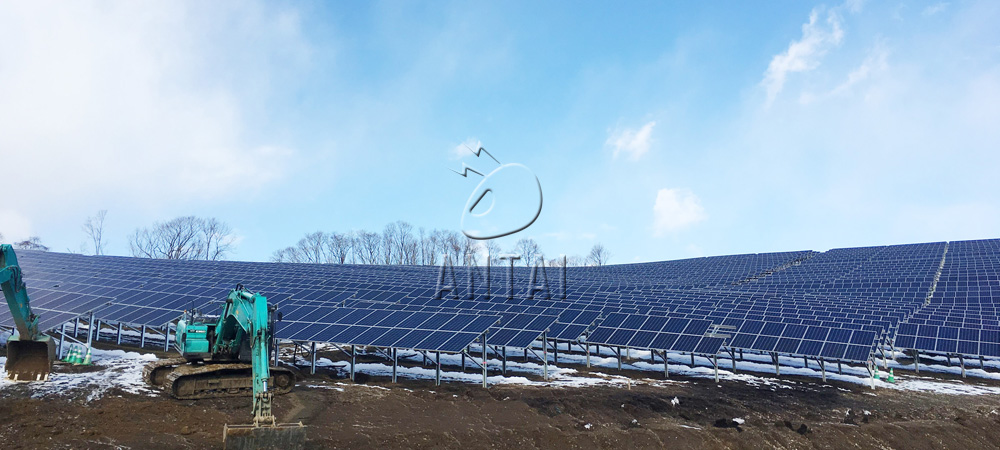

Location: Japan
Capacity: 40MW

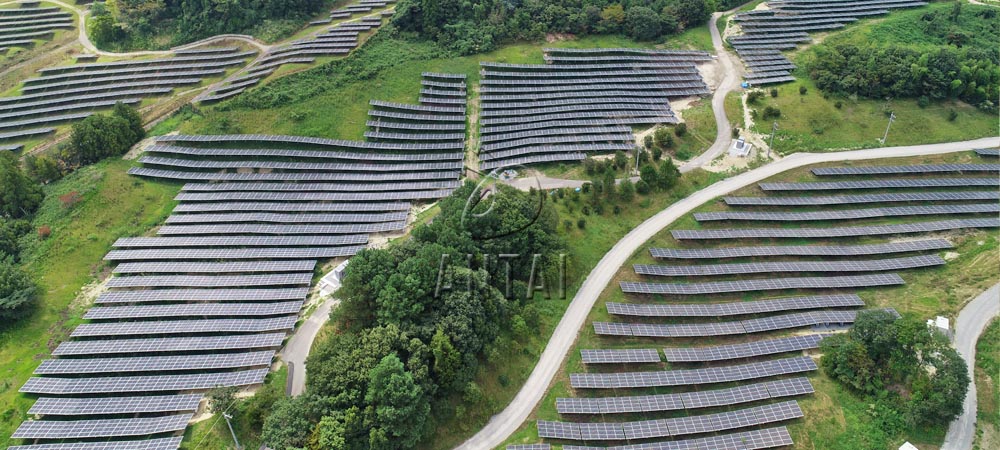

Location: Japan
Capacity: 10MW
