-Tilt angle can be achieved by manually or electric motor
-Triangle structure offer better stability for whole system

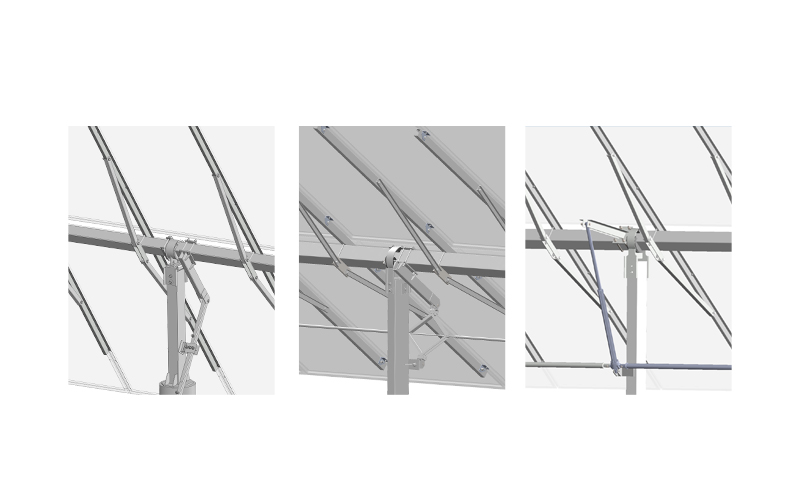

-Easy way to adjust tilt by actuator through transmission bar

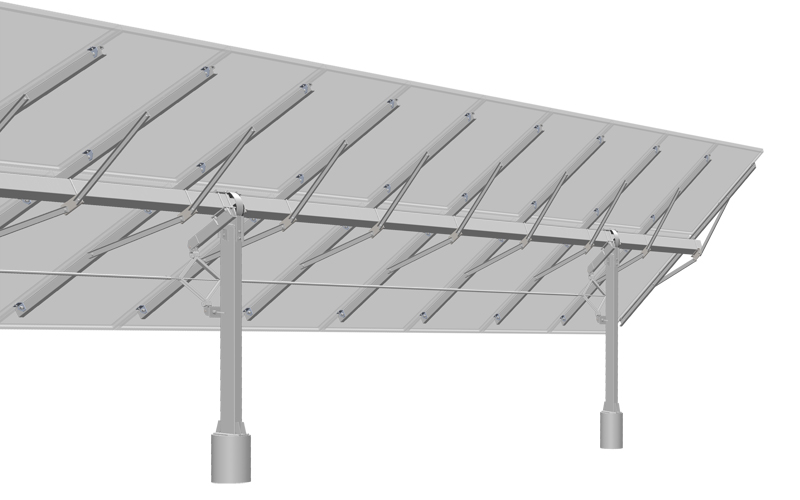

The Angle-adjustable solar mounting system is designed to be adjusted to different angles for achieve better power generation according to different seasons.

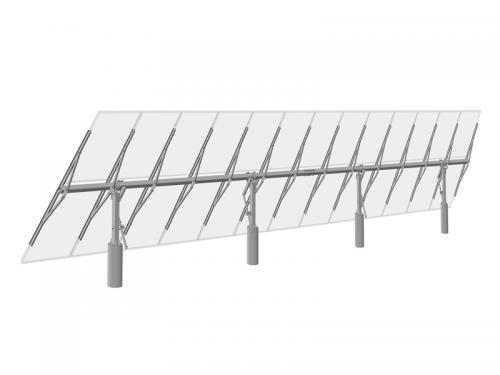

The Angle-adjustable solar mounting system is designed for increasing power generation by angle settings according to season changing. It can achieve different angle cover N-S 10°—60° through manual or with electric motor. Carbon steel is adopted as the main material for structure to ensure the whole stability.
-Tilt angle can be achieved by manually or electric motor
-Triangle structure offer better stability for whole system
-Easy way to adjust tilt by actuator through transmission bar
-Suitable for most of ground solar farms at sloping area
-Suitable for N-S direction 10°—60° adjustable
-Compatible for all solar modules
 |
 |
 |
 |
|
Pole |
Pole cap |
Connector |
Purlin |
 |
 |
 |
 |
| Driving arm |
Clamps |
Supporting beam |
Bearing seat |

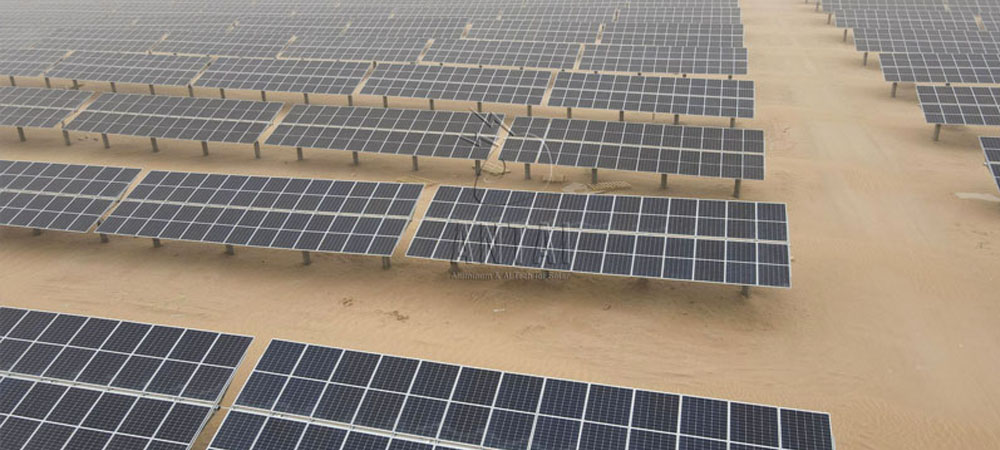

Location: China
Capacity: 100MW
Location: Inner Mongolia Autonomous Region, China
Capacity: 100MW

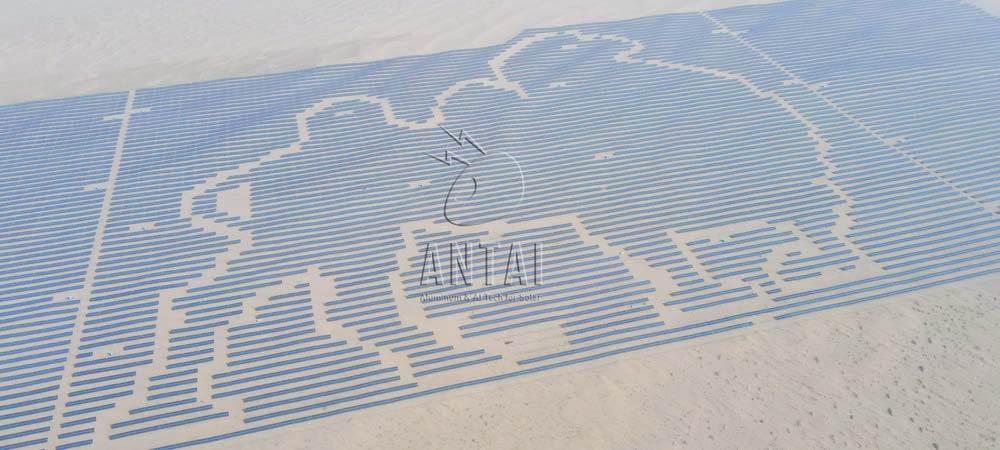

Feature: Camel shaped solar project
